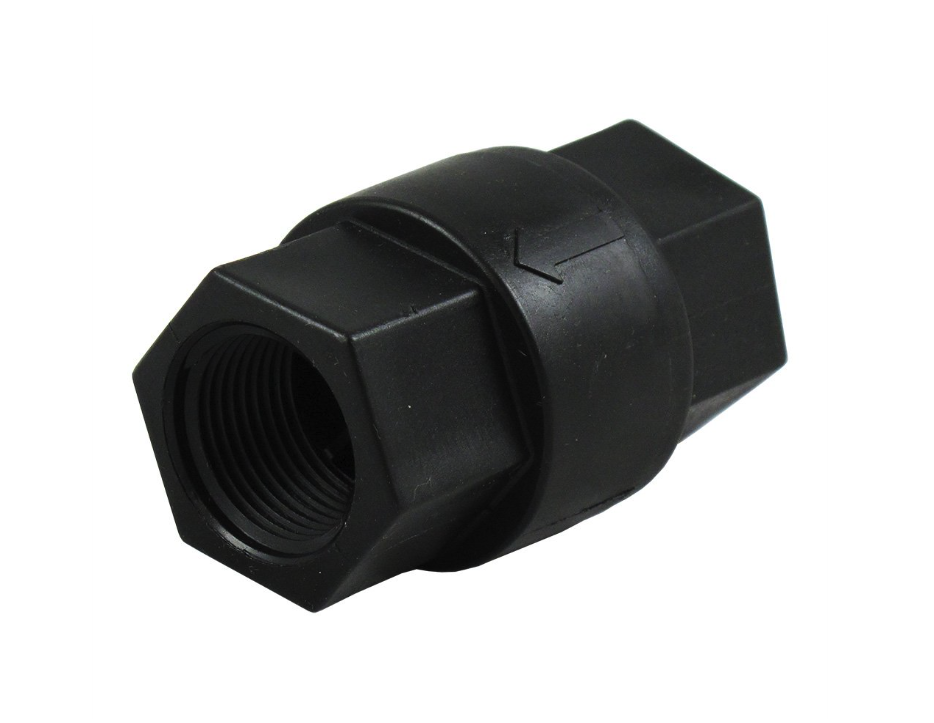

The 685 Series Poppet Check Valve Prevents reverse flow and incorporates a thin elastomer disc supported by a poppet that seals on the seat.
Pressure in the flow direction moves the seal off the seat first before pressure builds enough to move the poppet away from the seat.
The 685 Series Check Valve maximum operating pressure of 125 psi covers a wide range of air and fluid applications.
The 685 Check is a compact design with a light cracking pressure high flow rate and a positive seal at very low back pressure or slight vacuum.
For higher cracking pressure applications an embedded o-ring poppet is substituted for the standard elastomer disc poppet.
